LMD Manual Screw Gate
Product overview
Product model: LMD
Nominal diameter: 150*150 (mm)
Nominal pressure: 0.1MPa (Please specify when ordering with higher pressure)
Operating temperature: -10~+200℃
Body material: WCB, Q235A, 304, 316, 304L, 316L
Design standard: API 600, API6D, ASME B16.34, GB/T 12234
Structure length: ASME B16.10, API6D, GB/T 12221
Connection standard: ASME B16.5, ASME B16.47, GB/T 9113, JB/T 79, HG/T 20592
Pressure test: API 598, GB/T 13927, JB/T 9092
Pressure-temperature rating: ASME B16.34, GB/T 12224
LMD Manual Screw Gate overview and purpose

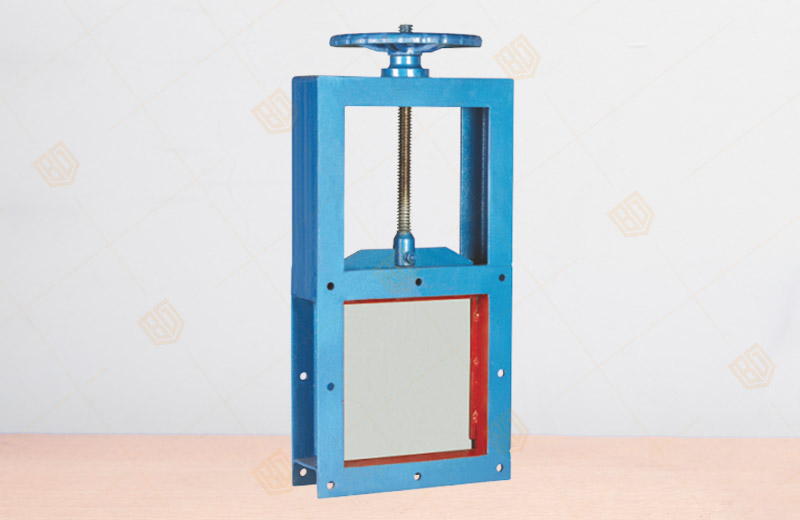

LMD Manual Screw Gate produced and sold by Baigang Valve Group is a kind of main control equipment for flow or throughput of powder, grain, granular and small pieces of materials. It is widely used in metallurgy, mining, building materials, food, chemical industry and other industries to control flow change or quickly cut off.
LMD Manual Screw Gate features
The utility model has the advantages of simple structure, flexible operation, light weight and no jamming. The utility model is especially suitable for conveying various solid materials and lumps and lumps of lumps with the size of about 50mm. The utility model has the advantages of convenient installation and convenient adjustment and can be adjusted at any time.
LMD Manual Screw Gate connection size
|
category |
A × A |
B × B |
C × C |
H |
L |
nd |
weight |
|
unidirectional |
200 × 200 |
256 × 256 |
296 × 296 |
820 |
100 |
8-Φ12 |
62 |
|
250 × 250 |
306 × 306 |
346 × 346 |
930 |
100 |
8-Φ14 |
70.5 |
|
|
300 × 300 |
356 × 356 |
396 × 396 |
1050 |
100 |
8-Φ14 |
81 |
|
|
400 × 400 |
456 × 456 |
496 × 496 |
140 |
100 |
12-Φ14 |
114 |
|
|
450 × 450 |
510 × 510 |
556 × 556 |
1450 |
120 |
12-Φ18 |
130 |
|
|
500 × 500 |
560 × 560 |
606 × 606 |
1610 |
120 |
16-Φ18 |
147 |
|
|
Bidirectional |
600 × 600 |
660 × 660 |
706 × 706 |
1830 |
120 |
16-Φ18 |
169 |
|
700 × 700 |
770 × 770 |
820 × 820 |
2130 |
140 |
20-Φ18 |
236 |
|
|
800 × 800 |
870 × 870 |
920 × 920 |
2440 |
140 |
20-Φ18 |
303 |
|
|
900 × 900 |
974 × 974 |
1030 × 1030 |
2660 |
160 |
27-Φ23 |
424 |
|
|
1000 × 1000 |
10741074 |
1130 × 1130 |
2870 |
160 |
24-Φ23 |
636 |
|
|
Description |
LMD - Unidirectional |
I-hand wheel |
Less than 1.7 meters from the ground with hand wheel, more than 1.7 meters with sprocket |
||||
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the LMD Manual Screw Gate performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
